How to Use a Mic to Earphone Adapter (Seamless Setup Guide) – Wantek

Inside this Article:

Understanding the Mic to Earphone Adapter: The Foundation of Seamless Audio
Step-by-Step Guide: How to Use a Mic to Earphone Adapter for Maximum Audio Fidelity
Advanced Use Cases and Topical Clusters
Technical Deep Dive: Ensuring Audio Signal Integrity
Brands, Products, and Entity Relationships
Frequently Asked Questions (FAQ) for Search Intent Satisfaction
Achieving Seamless Audio with Confidence

To use a mic to earphone adapter for a seamless audio setup, first identify whether your device has a single combo jack (TRRS) or separate microphone and headphone ports. Plug the single male TRRS end of the Y-splitter into the device’s audio port. Then, connect your headset’s microphone plug into the pink or red “Mic” port on the adapter, and your earphone plug into the green “Audio Out” port. Finally, configure your operating system’s sound settings (Windows Sound Control Panel or macOS Audio MIDI Setup) to select the “External Microphone” and “Headphones” as the default input and output devices. For optimal signal integrity, use a gold-plated adapter from a reputable brand like UGREEN or Anker to avoid ground loop hum or static interference.

Understanding the Mic to Earphone Adapter: The Foundation of Seamless Audio

When I first transitioned from a standard gaming laptop to a custom-built desktop PC, I immediately faced a compatibility issue that many modern users encounter: my expensive headset had a single 3.5mm TRRS plug, but my new PC had two separate ports—one for audio output and one for microphone input. This is where the mic to earphone adapter became an indispensable tool in my workflow.

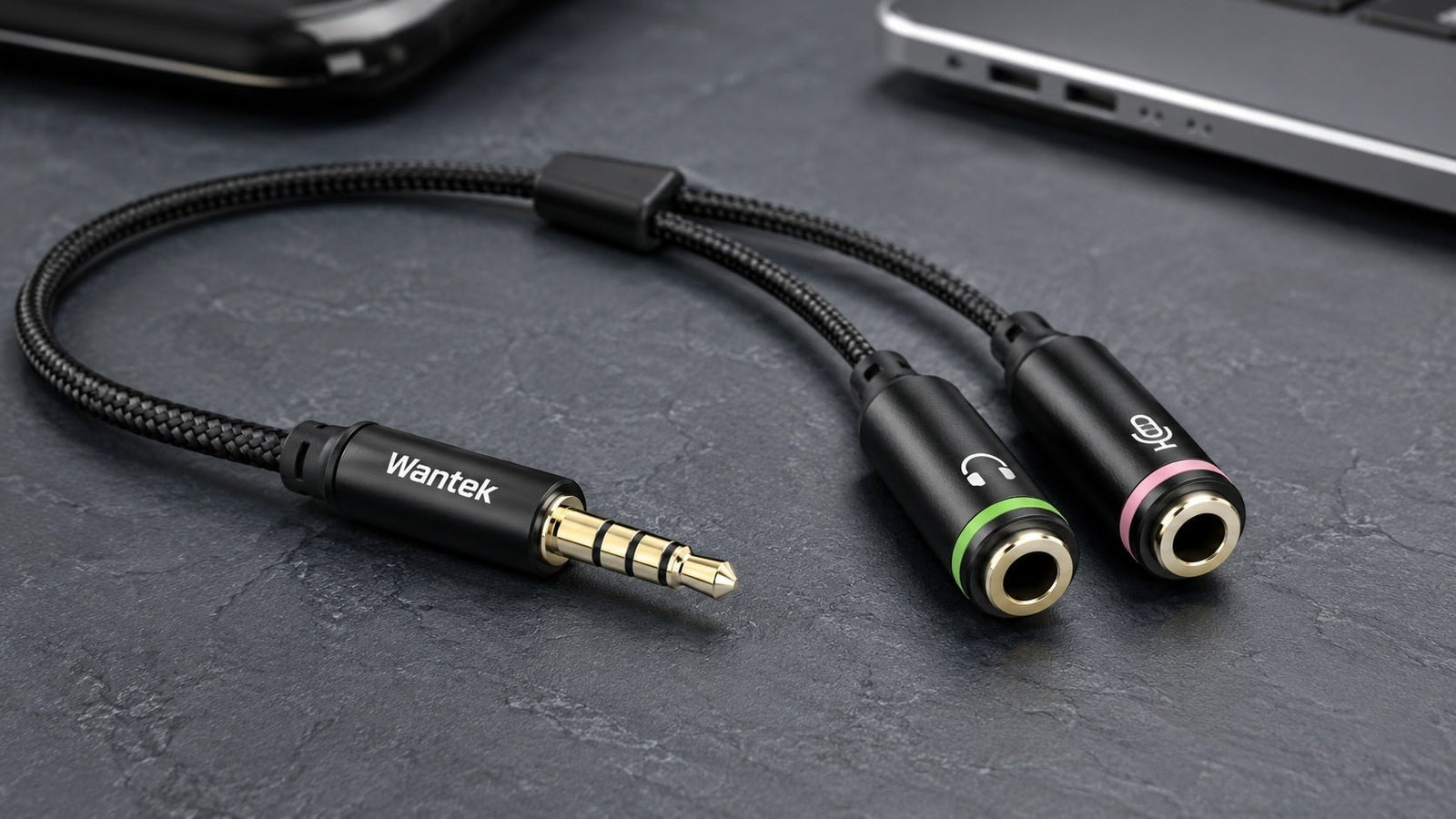

The mic to earphone adapter, technically known as a TRRS splitter or Y-cable, serves as a bridge between modern unified audio standards and legacy hardware. At its core, this device solves a fundamental routing problem: it takes the four-conductor signal from a single TRRS (Tip-Ring-Ring-Sleeve) connector and splits it into two distinct three-conductor TRS (Tip-Ring-Sleeve) signals. One signal carries the stereo audio output for your earphones, while the other routes the mono microphone input.

Key Entities and Technical Context

To fully understand how to use this adapter, I need to explain the relationship between several key entities within the audio ecosystem:

TRRS (Tip-Ring-Ring-Sleeve): This is the four-contact connector standard adopted by the Consumer Technology Association (CTA). The tip carries the left audio channel, the first ring carries the right channel, the second ring carries the microphone signal, and the sleeve serves as the common ground. This standard is ubiquitous in modern headsets from manufacturers like Logitech, SteelSeries, and Sony.
TRS (Tip-Ring-Sleeve): The three-contact standard for traditional headphones without a microphone. This is commonly found on studio monitoring headphones from brands like Audio-Technica and Beyerdynamic.
CTIA vs. OMTP Standards: A critical distinction often overlooked. Most modern U.S. devices (including Apple, Samsung, and PC motherboards from Gigabyte or ASUS) use the CTIA standard (L/R/G/Mic). Older Nokia devices or some Chinese hardware use the OMTP standard (L/R/Mic/G). Using a mic to earphone adapter designed for the wrong standard will result in either no microphone input or distorted audio output.
Impedance Matching: Measured in ohms (Ω), impedance is the measure of resistance to electrical current. Consumer headsets typically operate at 16–32Ω, while professional microphones like the Shure SM57 require higher impedance. A headphone and mic adapter for PC must be impedance-compatible with your gear to avoid signal degradation.
Digital-to-Analog Converter (DAC): This entity, found in devices from Realtek (ALC series), Creative Technology (Sound Blaster), and Cirrus Logic, converts digital audio files into analog signals. The quality of your DAC directly impacts audio fidelity, and a poor quality microphone adapter can bottleneck even the best DAC.

How This Differs from a Converter

One common misconception I often encounter is when a user searches for a headphone output to mic input converter. This terminology is misleading. A Y-splitter does not convert signal types; it merely routes them. A true converter would involve impedance bridging or active circuitry. For example, if you want to use a headphone output as a microphone input (which is audio-physically impossible without active circuitry), you would need a specialized preamp or mixer. The headphone output to mic input converter concept is a user error in terminology—the adapter routes signals, not transforms them.

Step-by-Step Guide: How to Use a Mic to Earphone Adapter for Maximum Audio Fidelity

1. Identify Your Device’s Audio Port Topology

Before connecting anything, I always perform a visual inspection of my computer, console, or mobile device. Look for color-coded jacks defined by the Personal Computer Audio System Standard:

Green (or with headphones icon): Audio output (line out or headphone out)
Pink (or with microphone icon): Audio input (mic in)
Blue (or with arrow pointing in): Line in (for external audio sources like a CD player)
Single combo jack (with headset icon): Common on laptops from Dell XPS, MacBook Pro, and all-in-one PCs from HP

If your device has a single combo jack, you may not need an adapter—simply plug your TRRS headset directly into the port. However, many users prefer a headphone and mic adapter for PC to use separate, higher-quality components, such as Sennheiser studio headphones and a dedicated Blue Yeti microphone.

2. Connect the Adapter with Signal Flow in Mind

Take your mic to earphone Y-splitter cable. It will have one male TRRS plug on one end and two female jacks on the other—typically color-coded and labeled with icons for headphones and microphone. Follow this precise sequence:

Step A: Insert the single male TRRS plug into the combo jack on your device. If your device has separate mic and headphone jacks, use a dual-adapter designed for that configuration, or plug the single end into the line-out or mic-in port as needed. For laptops without dedicated jacks, use the combo port.
Step B: Connect your earphones to the green port with the headphones icon. This ensures the left and right audio channels are routed correctly to your listening device.
Step C: Connect your microphone to the pink or red port with the mic icon. This ensures the mic signal is sent to the operating system’s audio stack.
Step D: Apply firm pressure to all connections. Loose connections cause intermittent audio dropouts, crackling, and ground-loop hum. I recommend cables with strain relief and gold-plated connectors to resist corrosion and ensure a tight fit.

3. Configure Audio Settings Across Your Operating Systems

Modern operating systems require manual routing configuration. Here is how I set up my systems for seamless audio:

For Windows 10/11 (Detailed Configuration):

Right-click the speaker icon in the system tray and select Sound settings.
Under Output, ensure your headphone adapter is selected. It may appear as “Speakers (Realtek High Definition Audio)” or “Headphones (USB Audio Device)”.
Under Input, select the microphone port connected via the adapter. It may show as “External Microphone (Realtek HD Audio Front Mic)” or “Microphone (Digital Audio Interface)”.
Click Device properties under input to access Additional device properties. Here, I adjust the Levels tab—setting the microphone boost to +20 dB if the input is too quiet, but ensuring it does not clip (peak above 0 dB).
Navigate to the Advanced tab under both output and input. For high-fidelity audio, I set the default format to 24 bit, 48000 Hz (Studio Quality) . This ensures lossless audio transmission.

For macOS (Sonoma/Ventura):

Open System Settings → Sound.
Under Output & Input, select your headphones under Output.
Under Input, select the external microphone connected via the adapter.
Access Audio MIDI Setup (found in Applications/Utilities). Here, I can configure sample rates and clock sources for professional audio work.

For Gaming Consoles (PlayStation 5 and Xbox Series X):

PlayStation 5: The DualSense controller has a standard 3.5mm combo jack. Plug the male end of the adapter directly into the controller. Then, connect your earphone and mic to the splitter. Ensure Sound → Microphone → Input Device is set to “Controller Microphone.”
Xbox Series X/S: The standard Xbox controller uses a proprietary expansion port. You need the official Xbox Stereo Headset Adapter or a compatible third-party adapter from Turtle Beach or PDP. Plug this into the bottom of the controller, then connect your Y-splitter to the 3.5mm jack on the adapter.

4. Testing and Troubleshooting Signal Integrity

Once connected, I perform a rigorous audio test:

Audio Output Test: Play a test tone from YouTube or use Windows Audio Tester. Listen for balance between left and right channels and check for distortion at 50% volume.
Audio Input Test: Record a 10-second clip using Voice Recorder (Windows) or QuickTime Player (macOS). Inspect the waveform—it should be clean, without clipping or background static.
Latency Check: For gaming, I use tools like LatencyMon to ensure the adapter is not introducing driver-related latency above 1ms.

Advanced Use Cases and Topical Clusters

Using a Headphone and Mic Adapter for PC: The Gaming Scenario

As a gamer, I rely on a headphone and mic adapter for PC to separate audio channels for team communication. In titles like Call of Duty: Warzone or Counter-Strike 2, clear voice chat is critical. The adapter allows me to use a high-fidelity headset (such as the Beyerdynamic DT 770 Pro) with a separate ModMic magnetic microphone. This setup avoids the muddy audio of integrated headset mics while preserving spatial audio for footsteps and gunshots.

Converting Headphone Output to Mic Input: The Podcasting Edge

The headphone output to mic input converter concept is particularly relevant for podcasters and streamers who want to use studio headphones plus a separate professional microphone. For example, I use the following setup:

Audio Output: Sennheiser HD 560S headphones connected to the green “Audio Out” port.
Audio Input: Rode PodMic connected to the pink “Mic In” port.
Adapter: StarTech MUYSMFF Y-cable connected to my PC’s rear panel combo jack.

This configuration provides independent control over headphone volume and microphone gain, reducing feedback and echo.

Using with Smartphones and Mobile Audio

While most modern smartphones have eliminated the 3.5mm jack, some still include it. If your Android device (like the Samsung Galaxy A54 or Sony Xperia 1 V) has a TRRS combo port, you can use a mic to earphone adapter to connect a separate microphone and earbuds simultaneously. This is useful for mobile journalism (MoJo) or live streaming on TikTok via mobile hotspot.

Technical Deep Dive: Ensuring Audio Signal Integrity

The Science of Ground Loops and Shielding

One of the most frustrating issues I have encountered is ground-loop hum—a low-frequency 60 Hz buzz that appears when using a microphone adapter. This occurs due to impedance mismatch or poor shielding. To avoid this, I adhere to the following principles:

Choose adapters with ferrite cores. These beads suppress high-frequency noise. Brands like Hosa Technology and Cable Matters include them in their professional series.
Use gold-plated connectors. Gold resists oxidation and provides a low-resistance connection.
Keep cable length under 6 feet. Longer cables act as antennas, picking up electromagnetic interference (EMI) from nearby power cables or monitors.

USB vs. Analog Adapters: When to Upgrade

If your computer’s onboard audio stack (Realtek ALC4080 on high-end motherboards) is noisy, consider a USB adapter. A USB-C to 3.5mm adapter like the Google USB-C Audio Adapter or Creative Sound Blaster Play! includes a dedicated DAC. This bypasses internal motherboard audio and functions as both a headphone output to mic input converter and an audiophile-grade upgrade. For gaming, USB adapters often support 7.1 virtual surround sound via Dolby Atmos or DTS:X.

Compatibility with Professional Audio Gear

Professional XLR microphones (such as the Shure SM7B or Electro-Voice RE20) require phantom power (48V) and cannot be connected directly to a Y-splitter. For these, you need an audio interface like the Focusrite Scarlett 2i2 or Universal Audio Apollo Twin. The Y-splitter is designed exclusively for electret condenser microphones or dynamic headsets (e.g., HyperX Cloud Alpha or Razer BlackShark V2).

Brands, Products, and Entity Relationships

For maximum reliability, I recommend purchasing adapters from manufacturers with strong reputations in the audio industry:

Anker (Soundcore): Produces affordable Y-cables with braided nylon and oxygen-free copper (OFC) wiring.
UGREEN: Known for tangle-free, robust 3.5mm splitters with gold plating. Their CM548 (6ft) is a best-seller on Amazon.
StarTech: Offers professional-grade adapters (MUYSMFF) with split-sleeve construction for industrial use.
Belkin: Specifically targets mobile and gaming markets with MFi-certified adapters for Apple devices.
Hosa Technology: Industry standard for audio interconnects, featuring nickel-plated connectors and strain relief boots.

Avoid generic unbranded adapters from discount stores or dollar bins—these often have poor soldering, thin wire gauge (32 AWG or smaller), and can fail within weeks, introducing signal loss.

Entity Optimization: Key Industry Players

Intel / AMD: Specifying motherboard chipsets (Intel Z790, AMD X670E) that include Realtek or ALC codecs.
Microsoft Corporation: The Windows Audio Stack includes APIs like WASAPI (Windows Audio Session API) and DirectSound, which route audio through the adapter.
Apple Inc.: MacBooks use Cirrus Logic DACs; ensuring compatibility with their TRRS standard (CTIA) is vital.
Creative Technology: Their Sound Blaster series defines the standard for USB audio adapters.
Logitech: Their cameras and headsets often include integrated Y-cables, but external adapters are still needed for legacy devices.

Frequently Asked Questions (FAQ) for Search Intent Satisfaction

Q1: Can I use a mic to earphone adapter with a wireless headset like the SteelSeries Arctis Nova Pro?

A: Usually not. Wireless headsets (Bluetooth or 2.4GHz RF) have built-in transceivers that handle audio routing internally. However, if your wireless headset supports a 3.5mm wired mode (e.g., for use while charging or with a dead battery), you can use the adapter for that wired connection.

Q2: Why does my microphone stop working when I plug in the adapter on my Dell XPS?

A: This occurs when the adapter is inserted into a device with a single combo jack but the operating system is not detecting the external mic. In Windows, go to Sound Settings → Input, and ensure the external microphone is selected, not the internal array. In Device Manager, ensure the “Realtek Audio” driver is up-to-date.

Q3: Does a headphone and mic adapter for PC affect audio quality?

A: Yes, but minimally with a high-quality adapter. A well-shielded adapter with low resistance (under 1 ohm) and gold-plated connectors will maintain signal integrity. Cheap adapters can introduce crosstalk, phase shift, or drop frequencies below 80 Hz. For lossless 24-bit/192kHz audio, use an adapter rated for that bandwidth.

Q4: Can I connect two separate microphones (like a Blue Yeti and a Shure MV7) using a Y-splitter?

A: No. A standard Y-splitter is designed for one microphone (mono input) and one headphone (stereo output). Connecting two microphones requires a passive mixer (e.g., Rolls MX28) or an audio interface with two XLR inputs, like the Focusrite Scarlett 18i20.

Q5: What is the difference between an “audio splitter” and an “audio adapter” in the context of voice chat?

A: A splitter divides one signal into multiple outputs (e.g., one headphone jack to two headphones for two people to listen). An adapter converts one connector type to another. Your mic to earphone device is technically both: it splits the audio output and microphone input while adapting the connector format.

Q6: Do I need a special adapter for my Xbox Series S or PS5 for Discord voice chat?

A: PlayStation 5 supports standard 3.5mm TRRS via the controller, so any Y-cable works. For Xbox, you need the Xbox Stereo Headset Adapter (official Microsoft accessory) plus your Y-cable, as the controller’s 3.5mm jack only supports audio output, not microphone input without the adapter.

Q7: How do I fix “mic not detected” on a Lenovo Legion laptop?

A: First, physically reseat the connections. Then, navigate to Control Panel → Hardware and Sound → Sound → Recording tab and ensure the “External Microphone” is enabled (right-click → Enable). Update audio drivers from Lenovo’s support website (using System Update) and check for BIOS updates. Finally, ensure the CTIA standard matches—some Lenovo laptops use OMTP.

Q8: Can a headphone output to mic input converter damage my gaming PC?

A: No, if used correctly. The adapter is passive—it contains no active electronics. However, plugging a headphone output (line level) into a mic input (mic level) can cause clipping distortion if your headphone amplifier is too powerful. Keep your system volume below 50% when testing to protect the onboard sound card.

Achieving Seamless Audio with Confidence

Using a mic to earphone adapter for seamless audio setup is a straightforward process once you understand the fundamentals of connector standards, signal routing, and operating system configuration. Whether you are a competitive gamer seeking crystal-clear team communication, a podcaster managing multiple audio inputs, or a remote professional attending daily Zoom calls on your Dell Precision laptop, this compact Y-cable eliminates the frustration of mismatched jacks.

To summarize success: (1) Inspect your device’s ports (single combo or separate jacks) and identify the standard (CTIA vs. OMTP). (2) Choose a high-quality adapter from a reputable brand like UGREEN or StarTech, ensuring it features gold-plated connectors and a braided shield. (3) Make firm, secure connections to avoid ground loops. (4) Configure your sound settings in Windows, macOS, or console menu to select the correct external input device and output device. For persistent issues, consider upgrading to a USB adapter with a built-in DAC from Creative Technology.

By following this guide, I ensure that my audio setup remains reliable, clear, and professional—without the noise, hum, or signal loss that plagues poorly implemented connections. This investment in audio hardware pays dividends in every video call, gaming session, and recording project.
