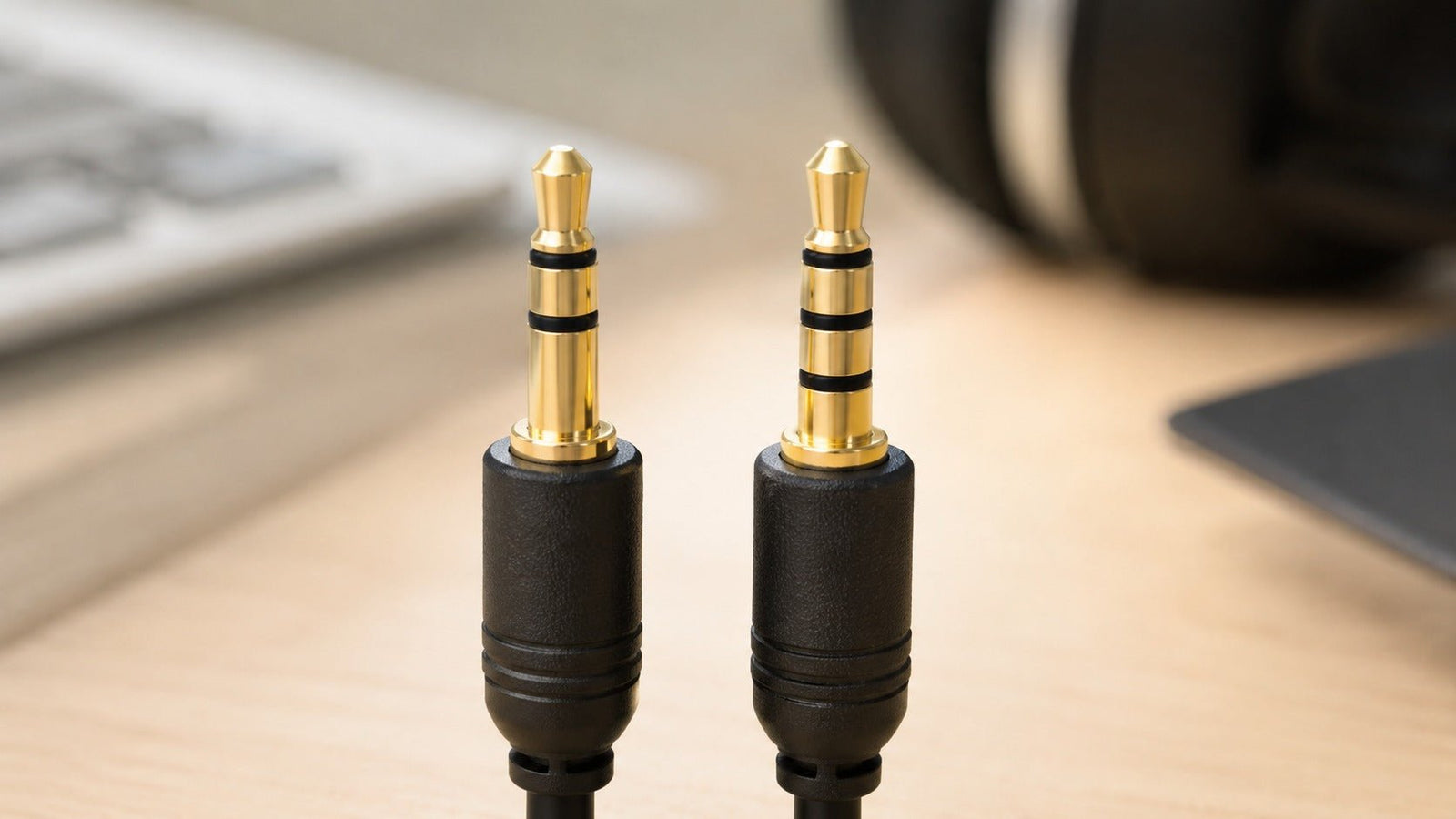

TRS (Tip-Ring-Sleeve) and TRRS (Tip-Ring-Ring-Sleeve) connectors differ primarily in the number of electrical contact segments they provide. A TRS plug has three contacts and can carry unbalanced stereo audio, balanced mono audio, or other application-specific signals. A TRRS plug has four contacts and is commonly used for stereo headphones plus a microphone on consumer headsets, although other TRRS wiring schemes also exist.
The connector alone does not determine signal quality, microphone type, power requirements, or device compatibility. Those depend on the wiring, electrical interface, and equipment at both ends of the connection.
Understanding Audio Jack Anatomy: Tip, Ring, and Sleeve Explained
Before comparing trs vs trrs, it helps to understand the physical anatomy of phone-style audio connectors. Their names describe the conductive metal sections of the plug, separated by insulating bands.
Tip: The terminal section at the end of the plug. Its electrical function depends on the application.
Ring: A conductive section between insulating bands. Each additional ring creates another independent contact.
Sleeve: The section nearest the cable body. In many common audio configurations it serves as ground or shield, but its function depends on the wiring standard.
The TRS Connector: Three Conductors for Multiple Audio Applications
A TRS connector has three contact segments: Tip, Ring, and Sleeve. Those contacts can be assigned differently depending on the equipment.
Common TRS Applications:
- Balanced Mono Audio: A common professional balanced configuration uses Tip for the positive or non-inverted signal, Ring for the negative or inverted signal, and Sleeve for shield or ground. A differential receiving circuit can reject noise that appears similarly on both signal conductors, which is why balanced connections are useful for professional line-level audio.
- Unbalanced Stereo Audio: Headphone connections commonly use Tip for the left channel, Ring for the right channel, and Sleeve as the shared return.
The important distinction is that a TRS plug is not inherently “balanced” or “stereo.” The circuit connected to it determines how its three contacts are used.
The TRRS Connector: Four Conductors for Headsets and Other Signals
TRRS adds a second Ring, producing four contacts: Tip, Ring 1, Ring 2, and Sleeve. In a common consumer headset configuration, those four contacts carry left audio, right audio, microphone, and ground.
The extra conductor makes it possible to combine stereo playback and microphone input in one plug, which is why four-conductor 3.5 mm connectors became common on wired smartphone, laptop, and gaming headsets.
Common TRRS Wiring:
- CTIA Headset Wiring: Left audio, right audio, ground, and microphone are assigned across the four contacts using the LRGM order.
- OMTP Headset Wiring: Left and right audio remain in the same positions, while microphone and ground are reversed relative to CTIA.
The Android Open Source Project specifies CTIA wiring for compatible four-conductor Android headsets and lists OMTP as an optional alternative.
“For the OMTP pinout, switch the positions of the MIC and GND segments.” — Android Open Source Project, 3.5 mm headset specification
TRS and TRRS: Comprehensive Comparison Table
| Feature | TRS Connector | TRRS Connector |
|---|---|---|
| Contact Segments | 3: Tip, Ring, Sleeve | 4: Tip, Ring, Ring, Sleeve |
| Common Headphone Use | Stereo playback | Stereo playback plus microphone |
| Balanced Audio Use | Common for mono balanced line signals | Possible in specialized wiring schemes |
| Microphone Support | Possible when wired for a microphone input | Common in consumer headset wiring |
| Typical Devices | Headphones, mixers, interfaces, studio equipment | Headsets, combo jacks, some controllers and portable devices |
| Signal Assignment | Application-dependent | Application-dependent |
| Headset Wiring Standards | Not normally applicable | Commonly CTIA; OMTP exists on some equipment |
TRS vs TRRS Microphone: What Actually Changes?
The main issue in a TRS vs TRRS microphone comparison is not simply the number of contacts. You also need to know the microphone's signal level, wiring, power requirement, and the input it is designed to use.
TRS Microphones: Connector Type Does Not Define the Microphone
A microphone fitted with a TRS connector may be dynamic, electret, condenser, balanced, unbalanced, powered, or unpowered depending on its design.
A TRS plug therefore does not mean that the microphone requires 48 V phantom power.
Professional condenser microphones commonly use balanced XLR connections when phantom power is required. Other microphones, including some lavalier and camera microphones, use lower-voltage powering arrangements.
Before connecting a microphone, check both the microphone specification and the destination input.
TRRS Microphones: Common on Consumer Headset Inputs
Consumer TRRS headset inputs commonly provide a small DC microphone bias for an electret microphone while receiving the microphone's analog signal through the same headset interface.
This bias is fundamentally different from professional phantom power. Shure's technical explanation of phantom power and bias voltage describes phantom power as a balanced powering method and microphone bias as a lower-voltage supply applied differently.
Key Takeaway: Do not select a microphone solely because its plug has three or four contacts. Match its wiring, electrical requirements, and intended input to the device you plan to use.
TRS vs TRRS Headphones: What Usually Works?
For a broader TRS vs TRRS headphones decision, separate headphone playback from microphone functionality.
Using TRS Headphones with a TRRS Headset Jack
Ordinary stereo TRS headphones often work for playback when connected to a correctly designed TRRS headset jack because the left and right headphone contacts align with the corresponding output contacts.
You normally receive stereo playback but no microphone input because the headphones do not provide a microphone conductor.
Compatibility is still device-dependent, so this should not be treated as a universal guarantee.
Using TRRS Headsets with a TRS Headphone Jack
A four-conductor headset can physically fit many three-conductor headphone sockets, but the electrical contacts may not align as intended.
Possible results include:
- Normal stereo playback with no microphone
- Incorrect channel or ground contact
- Low, distorted, or unusual audio
- Intermittent sound depending on plug position
- Complete incompatibility
A TRRS-to-TRS connection does not inherently create phase cancellation. The actual result depends on how the plug contacts meet the jack and how the source output is designed.
CTIA vs OMTP: Why TRRS Wiring Matters
The fourth contact created a compatibility problem because manufacturers needed to decide where microphone and ground should be placed.
CTIA Wiring
The common CTIA headset arrangement is:
- Tip: Left audio
- Ring 1: Right audio
- Ring 2: Ground
- Sleeve: Microphone
This arrangement is used by the Android headset specification for compatible four-conductor devices.
OMTP Wiring
OMTP reverses the final two functions:
- Tip: Left audio
- Ring 1: Right audio
- Ring 2: Microphone
- Sleeve: Ground
The Compatibility Problem
When a CTIA headset is connected to equipment wired for OMTP, or vice versa, microphone and ground no longer align correctly.
Depending on the device, this can cause:
- A microphone that is not detected
- In-line buttons that do not respond
- Reduced or abnormal playback
- Intermittent operation
A CTIA-to-OMTP adapter simply swaps the relevant contacts and can restore compatibility when the wiring standard is the only mismatch.
Related Connectors in the Audio Ecosystem
Understanding 3.5mm TRS vs TRRS is easier when you view them as members of a larger connector family.
TS Connectors: Two Contacts
TS means Tip-Sleeve. It provides two electrical contacts and is widely used for unbalanced mono signals.
Typical applications include:
- Electric guitars
- Instrument cables
- Some unbalanced line connections
- Certain control or switching functions
The plug shape does not guarantee the signal type, but unbalanced mono audio is its best-known use.
Five-Conductor Connectors
Five-contact phone-style connectors are sometimes described as TRRRS: Tip-Ring-Ring-Ring-Sleeve.
They have appeared in specialized headphone, mobile-device, balanced-audio, and control applications. There is no single universal signal assignment that applies to every five-contact connector, so the equipment documentation must be checked before connecting them.
Connector Sizes: 3.5 mm, 6.35 mm, and 2.5 mm
TRS and TRRS describe contact configurations, not physical diameter.
Common sizes include:
- 3.5 mm: Widely used for consumer headphones, headsets, portable equipment, computers, and some professional accessories
- 6.35 mm: Common on mixers, amplifiers, audio interfaces, studio headphones, instruments, and other professional equipment
- 2.5 mm: Used on some older portable devices, communication equipment, and specialized audio products
A 6.35 mm TRS plug and a 3.5 mm TRS plug can have the same contact pattern while serving different equipment.
Combo Jacks and Headset Detection
Many computers use a single 3.5 mm combo jack for both headphone output and microphone input.
The hardware or driver may detect a connected accessory, ask whether a headset or headphones were inserted, or switch routing based on the electrical characteristics it sees.
Detection behavior varies by computer manufacturer, codec, operating system, and driver. Do not assume every four-contact socket automatically supports every TRS or TRRS accessory.
Practical Compatibility Matrix
| Source | Connected Device | Typical Result | Compatibility |
|---|---|---|---|
| CTIA headset combo jack | TRS stereo headphones | Stereo playback; no microphone | Usually partial |
| CTIA headset combo jack | Compatible CTIA headset | Stereo playback plus microphone | Usually complete |
| Laptop combo jack | TRS headphones | Playback generally available | Usually partial |
| TRS headphone output | TRRS headset | Playback varies; microphone unavailable | Device-dependent |
| Controller headset jack | Compatible TRRS headset | Audio and chat when wiring is supported | Device-dependent |
| Dedicated microphone input | Headset microphone through correct splitter | Microphone input only | Depends on adapter and input |
When to Choose TRS Cables
TRS is useful when the equipment specifically calls for a three-contact connector.
Typical examples include:
- Balanced Line Connections: Audio interfaces, mixers, processors, and monitors may use balanced TRS inputs or outputs.
- Stereo Headphones: Many wired headphones use three-contact TRS plugs for left, right, and shared return.
- Patch Bays: Professional patch systems frequently use TRS connections, although wiring conventions vary.
- Insert Connections: Some mixers use a single TRS connector to carry both send and return signals.
- Instrument and Audio Equipment: Certain pedals, amplifiers, interfaces, and controllers use TRS for audio or control functions.
Always check the equipment label or manual because identical TRS connectors can carry very different signals.
3.5 mm Headsets
Need a 3.5 mm Headset for Calls?
Start with the port on your device, then compare Wantek single-ear and dual-ear 3.5 mm headsets by connection, microphone, and controls.
When to Choose TRRS Cables
TRRS is appropriate when a device needs four independently connected conductors.
Common examples include:
- Wired Headsets: Stereo headphones plus a microphone through one plug
- Laptop Combo Jacks: Headphone output and microphone input through one socket
- Gaming Controllers: Audio and voice communication where the controller supports a compatible headset pinout
- Mobile Recording: Microphones specifically designed for compatible TRRS inputs
- In-Line Controls: Some headset designs use the microphone circuit for remote-button functions
Verify the pinout rather than assuming any four-contact plug will work with any four-contact jack.
Solutions for TRS-TRRS Compatibility Mismatches
Adapter Types and Their Limitations
Adapters solve specific wiring problems. They do not automatically convert every electrical format into every other format.
Headset Splitters: A TRRS headset plug can be separated into dedicated headphone and microphone connections for computers that provide two individual audio jacks.
Microphone Adapters: Some microphones with 3.5 mm TRS outputs can connect to compatible TRRS microphone inputs through a passive adapter that correctly remaps the contacts. RØDE, for example, documents its SC4 TRS-to-TRRS adapter for connecting microphones with 3.5 mm TRS outputs to compatible TRRS devices.
CTIA/OMTP Adapters: These swap microphone and ground when the headset and device use different four-contact wiring conventions.
Active Interfaces: Active electronics are necessary when the problem is more than contact placement—for example, when signal level, impedance, powering, amplification, analog-to-digital conversion, or another electrical requirement must be changed.
The key question is not “Can TRS be converted to TRRS?” but “What signal does each side expect?”
Computer Call Setup
Prefer a Wired Computer Connection?
If your computer provides USB or USB-C, compare Wantek wired headsets by available connection, wearing style, microphone, and call controls instead of relying on a 3.5 mm headset connection.
The Future of Audio Connectors: USB-C and Wireless Alternatives
Analog phone connectors now coexist with USB-C, USB audio, proprietary digital connections, and Bluetooth.
That does not make TRS or TRRS obsolete. It means users have more connection paths to verify.
USB-C Audio Adapters
USB-C audio is not implemented identically on every device.
A USB-C audio accessory may use digital USB Audio with conversion electronics inside the headset or adapter. Other hardware implementations can support different accessory modes. As a result, a USB-C-to-3.5 mm adapter that works on one device is not automatically guaranteed to work on another.
Check whether the adapter supports:
- Headphone output
- Microphone input
- Headset button functions
- The device's required USB-C audio implementation
The European Union's common charging requirements establish USB-C as the charging port for covered categories of portable electronics. They do not require manufacturers to remove 3.5 mm analog audio jacks.
Bluetooth Wireless Audio
Bluetooth removes the physical connector entirely but introduces a different set of engineering trade-offs.
Depending on the device, codec, profile, and application, considerations may include:
- Wireless latency
- Codec compression
- Radio interference
- Microphone-mode limitations
- Battery life
- Pairing and device switching
Wired connections avoid battery dependence and wireless transport latency. Bluetooth provides mobility and convenience. Neither connection method is universally superior for every use case.
Expert Troubleshooting: Common TRS and TRRS Problems
Issue: Microphone Works Only When the Plug Is Partially Inserted
Likely cause: The contacts are not aligning correctly when the plug is fully seated. This can happen with an incompatible pinout, unsuitable adapter, damaged jack, or plug whose contact geometry does not match the socket.
Solution: Confirm the required connector and pinout, test without extension cables, and use the correct adapter rather than relying on partial insertion.
Issue: Headphones Sound Hollow, Quiet, or Distorted
Likely cause: One or more contacts may be connecting to the wrong part of the jack, particularly the shared return.
Solution: Confirm whether the output is designed for TRS headphones or a TRRS headset and use an adapter designed for that exact connection.
Issue: Microphone Is Not Detected on a Laptop
Possible causes:
- The socket is headphone-only rather than a headset combo jack
- The headset uses an incompatible pinout
- The operating system selected the wrong input
- The audio driver has not switched to headset mode
- A splitter or extension cable is incompatible
- The microphone or jack is damaged
Solution: Verify the port type first, then check the operating system's input-device selection and manufacturer audio settings.
Issue: Static or Hum
Possible causes include:
- Damaged cables
- Poor contact between plug and socket
- Ground-loop conditions
- Electromagnetic interference
- Unbalanced connections over unsuitable cable runs
- Faulty adapters
Test one component at a time rather than assuming the number of plug contacts is responsible.
Frequently Asked Questions About TRS and TRRS
Can I plug a TRRS headset into a TRS headphone jack?
Usually, it can be inserted physically, but microphone functionality will not be available from a headphone-only TRS output. Playback may work normally or may be incorrect depending on jack construction and contact alignment.
How can I identify whether my laptop has a TRS or TRRS jack?
Look for the symbol beside the port. A combined headset icon usually indicates headphone-plus-microphone support, while a headphone-only icon generally identifies an output-only jack. Confirm the laptop's technical documentation when the marking is unclear.
Is a TS cable the same as a TRS cable?
No. TS has two contacts; TRS has three. A TS cable is commonly used for unbalanced mono signals, while TRS can carry balanced mono, unbalanced stereo, or other three-conductor functions. Do not substitute them unless the equipment documentation allows it.
Why does my microphone sound quiet or muffled?
Possible causes include incorrect headset wiring, insufficient microphone bias for the specific microphone, incorrect gain settings, poor microphone placement, a partially seated connector, or an incompatible adapter.
Can I convert a TRS microphone to TRRS?
Sometimes. If the microphone's electrical output is compatible with the destination input, a correctly wired passive adapter may be enough. Other microphones require powering, amplification, impedance matching, or an audio interface. Connector shape alone cannot determine compatibility.
What is the difference between balanced TRS and stereo TRS?
They can use physically identical connectors but carry different signals.
A common balanced mono TRS connection uses Tip and Ring as two versions of the same signal with opposite polarity, plus Sleeve as shield or reference. Stereo headphones instead use Tip for left audio, Ring for right audio, and Sleeve as shared return.
Why doesn't my headset work with a gaming controller?
Possible causes include an incompatible four-contact pinout, a headset that requires USB or proprietary electronics, unsupported in-line controls, controller settings, or a headset designed for another connection method. Check the controller and headset specifications rather than relying solely on plug size.
Do all wired earbuds with microphones use the same TRRS wiring?
No. CTIA is common on modern consumer equipment, but other pinouts and proprietary implementations exist. Verify compatibility when using older accessories or unusual devices.
Can TRRS carry video signals?
A four-contact connector can be wired for analog video and audio in equipment designed for that purpose. Such A/V pinouts are device-specific and should not be confused with CTIA headset wiring.
Mastering TRS and TRRS for Reliable Audio Connectivity
The practical difference between three- and four-contact audio plugs is simple, but compatibility depends on more than ring count.
Key Takeaways:
- For ordinary stereo headphones: TRS is a common three-contact configuration.
- For wired consumer headsets: TRRS commonly combines stereo playback and microphone input.
- For professional balanced audio: TRS can carry balanced mono line-level signals when the equipment is wired for that purpose.
- For microphones: Verify signal type, pinout, bias or phantom-power requirements, and input compatibility.
- For CTIA and OMTP: Microphone and ground positions differ.
- For adapters: Use passive adapters for appropriate contact remapping and active electronics when genuine electrical conversion is required.
- For USB-C: Verify the device and adapter's audio capabilities rather than assuming every USB-C dongle is equivalent.
- For troubleshooting: Start with the exact jack type, pinout, signal direction, and equipment documentation.
TRS and TRRS describe the physical contact arrangement of a connector—not an entire audio standard. Once you separate connector geometry from signal type, power, pinout, and device requirements, most compatibility problems become much easier to diagnose.
Remember: A 3.5 mm plug may look familiar, but identical plug diameters can carry very different signals. Match the connector, wiring, electrical interface, and intended application before connecting audio equipment.
Related Guides for Headset Connections
Start with the broader connection decision, then go deeper into adapters, microphone setup, or the 3.5 mm hardware your device uses.
Already confirmed a compatible analog connection? Compare 3.5mm headsets with mic for work and calls .
